New XMOS chips??!

Technical discussions around xCORE processors (e.g. General Purpose (L/G), xCORE-USB, xCORE-Analog, xCORE-XA).
richard
Respected Member
Posts: 318
Joined: Tue Dec 15, 2009 12:46 am

Post by richard »

infiniteimprobability wrote:There are a few other instructions which will boost speed too - especially load/store double (64b). This will really help on memcpy, dsp and push/pops.
To make this a bit more concrete, using memcpy to copy 1KB of word aligned data from one location to another is 2.55 times faster on xCORE-200 (assuming at least 5 cores are in use). The speed up comes from the use of double word load and store instructions, dual issue and increased instruction fetch bandwidth.


User avatar
segher
XCore Expert
Posts: 844
Joined: Sun Jul 11, 2010 1:31 am

Post by segher »

I assume that 2.55x speedup is from 1-lane mode to 2-lane
mode, both on 200 parts? So that makes 2.04x speedup
over G/L (assuming max. 5 threads). G/L can do the loop
in 4 thread cycles, so 1 byte per thread cycle (no loop
unrolling); 200 can do it 2 bytes per thread cycle? Nice :-)
User avatar
Folknology
XCore Legend
Posts: 1274
Joined: Thu Dec 10, 2009 10:20 pm

Post by Folknology »

XMatt wrote:
Folknology wrote:Thanks Xmatt

Does the boot actually use QSPI to improve performance as well as overlays?
Yes QSPI boot, the embedded flash parts have QSPI flash internally.
Thanks XMatt does this mean that the X*F chips (with internal flash) are based on a Quad SPI tile bonded to ports 1B,4B & 1C. If so can these pins be used externally, or is something more sophisticated happening?

I am trying to work out if I can use these pins as I would like to be able to.

regards
Al
richard
Respected Member
Posts: 318
Joined: Tue Dec 15, 2009 12:46 am

Post by richard »

segher wrote:I assume that 2.55x speedup is from 1-lane mode to 2-lane
mode, both on 200 parts? So that makes 2.04x speedup
over G/L (assuming max. 5 threads). G/L can do the loop
in 4 thread cycles, so 1 byte per thread cycle (no loop
unrolling); 200 can do it 2 bytes per thread cycle? Nice :-)
The 2.55x speed up compares an optimized dual issue memcpy running on a xCORE-200 logical core to an optimized single issue memory running a XS1-L/G logical core assuming that the logical cores are running at the same rate. If you have 5 or more cores active then the cores will be running at the same rate. If have less than 4 cores active the xCORE-200 cores will be running at 100MHz instead of 125MHz so the speed up will only be 2.04x.
User avatar
segher
XCore Expert
Posts: 844
Joined: Sun Jul 11, 2010 1:31 am

Post by segher »

Ah, you're talking about a full C library memcpy routine,
so that includes setup overhead etc.

We don't have manuals yet so I have to guess a bit; a fun
game :-)

Looking only at the core of an unrolled copy loop, on L/G
that is [ load / store / fetch no-op ], so 3 cycles per word,
12 cycles for 4 words. To get about 2.55x speedup over
that, my best guess is 2.4x, via [ ll / ss / ll / ss / fetch ].
Is that about right?

Pretty awesome :-)
User avatar
leon_heller
XCore Expert
Posts: 546
Joined: Thu Dec 10, 2009 10:41 pm
Location: St. Leonards-on-Sea, E. Sussex, UK.

Post by leon_heller »

A low-cost kit should soon be available:

https://www.xmos.com/support/boards?pro ... 0&secure=1

Version 14.0 of xTIMEcomposer Studio, which supports the new devices, is available now:

http://www.xmos.com/support/tools

The Timing Analyser can be used to check performance details.
User avatar
lilltroll
XCore Expert
Posts: 956
Joined: Fri Dec 11, 2009 3:53 am
Location: Sweden, Eskilstuna

Post by lilltroll »

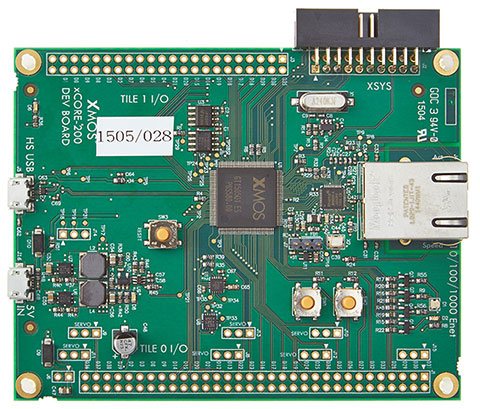

I got the
today.
Anyone else?

I'm playing around with the gigabit Ethernet example and virtual COM port here :)
User avatar
leon_heller
XCore Expert
Posts: 546
Joined: Thu Dec 10, 2009 10:41 pm
Location: St. Leonards-on-Sea, E. Sussex, UK.

Post by leon_heller »

How did you get it?
User avatar
segher
XCore Expert
Posts: 844
Joined: Sun Jul 11, 2010 1:31 am

Post by segher »

lilltroll wrote:I got the [nice new board] today.
Anyone else?
With cables! :-)
Hagrid
Active Member
Posts: 44
Joined: Mon Jul 29, 2013 4:33 am

Post by Hagrid »

So, can anyone tell me how to get one of these boards? Pricing?

Cannot find any listing on Element14/Farnell or Digikey.
